SMZF-450 Pillow packaging machine(Film from below)
- Suitable for freezing, soft food, such as ice crream , plaster, sausage, etc. Three axis drive, a set of electric control system, the specification transformation, a key to complete.matchless bag length range: 150 ~ 1000 mm It is Suitable for many met
- Tel：+86 15721208277
-
Content
|
SMZF-450 Pillow packaging machine(Film from below) |
price（standard configuration）
Standard Fob Shanghai Port price: *****USD
Control system: three motor drive
Human-machine interface: colorful touch screen
Electric control system：a full set Taida brand
Spare parts: each present a set
Attachment: present a coding machine
Warranty: 1year
After sale service: Free training, free installing, free spare parts
Payment: TT, 50% for deposit, balance after machine finished.
Shipping: Standard sea wooden case
Special need: OEM is ok
Features
SMZF - 450 packaging machine using a full set of electric control system, three axis drive, all parameters are setted in the screen, realizing one key to achieve,it is very conveniet to reset the specifications
The range of packaging length is 15 centimeters to 1m , and can be adjusted at will, knife speed without adjusting
Matched with automatic pipe feeding machine ,it can realize automatic counting, automatic feeding, and easy to set the number per pack .
Parameter
型 号 SMZF-450
包装膜宽度 450mm
制袋长度 150-1000mm
包装物宽度 30-170mm
包装物高度 1-50mm
卷膜直径 <420mm
包装速度 20-160bag/min
电源规格 220V/3KW
设备重量 550KG
L 4450mm
W 1000mm
H 1010mm
如果有特殊要求的包装范围，可以根据您的需求定制．

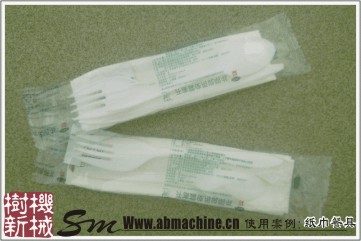

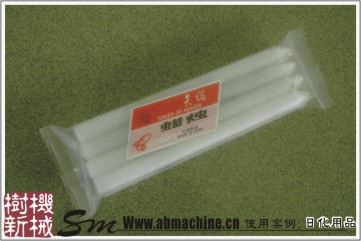

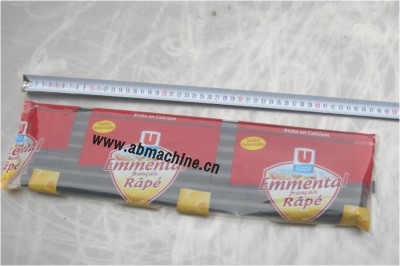

Sample Related
Knowledge Related

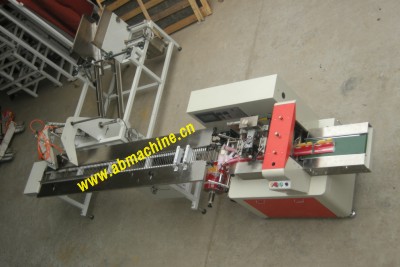

This machine is for packing iron
tube, steel tube, cuprum tube, and plastic tube, it can configure automatic
feed equipment, automatic count equipment, automatic packing machine, like what
in the video. It also can pack multi-unit tubes, for example sausages. Please
contact our salesman for details: 40001-42221, we welcome you to visit our
company.
