Purpose and characteristic

1. All the processesof the mixing,filling,forming bar,cooling,and demoulding are automatically finished.
2. High capacity up to 3Tons/8Hours and small dimensions of just 1 meter width and 6.5meters length.
3. Types of different shapes of moulds can be changed freely.

Oatmeal chocolate candy bar machine of SMQ-285 is the newest product developed by our company .It can produce oatmeal chocolate bar , puffed millet cake , puffed rice chocolate bar , etc , and can finish mixing , filling , forming , cooling and demoulding automatically by itself, the front process of filling materials just need one man , the machine can finish 3tons per 8hours ,and it take small room,thelength is only 6.5 meters including the cooling machine , it is the smallest machine of oatmeal chocolate bar in China. You can decide the shape of the candy bar , many types of shapes can be chosen , and it is very convenient to replace the moulds,just half an hour is enough.This machine has applied for many patents , any counterfeit will be sued !

    Configuration

Pricing scheme:

　price：RMB*****money
　control system：TaiDa full automatic control system
　configuration：Mixer machine+refrigeration system
　　　　　　　　automatic cutting+automatic demolding
　Molds:100 pcs
　installation and trial run:Onsite Services
　term of service:12 month
　freight:free of charge
　payment method:payment before delivery

Note: this price is the unified pricing of the standard disposition, and decline the counteroffer, if need additional configuration, price please consult my company business personnel.

    Specification

Model:　　　SMCQ-285
Die size:　　　540*285mm
Die quantity:　100Piece
Speed:　　　　10p/min
Power:　　　　380v/50hz 20kw
Weight:　　　　1500kg

L　6500mm
W　1000mm
H　2500mm

    Photos Sample

    Configuration models

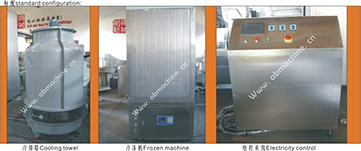

Standard configuration

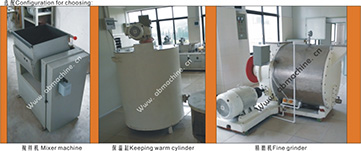

Configuration for choosing

    Photos Related

    Video Related

SMCQ-285 The oatmeal chocolate machine factory test machine Visit Video

SMCQ-285 Oatmeal chocolate is frozen Visit Video

SMCQ-285 The oatmeal chocolate air machine runs Visit Video

SMCQ-285 Stir in the oatmeal chocolate test machine Visit Video

    Company introduction

    Shanghai SHUXIN Machinery Co., Ltd main products: Food machines, packing machines, transfer machines and other nonstandard machines. Food machines include: sunflower seed candy equipment, puffed rice candy equipment, peanut candy equipment, sticky candy equipment, nougat equipment, sesame candy equipment,     From the establishing year 2007, our company already has more than thousand customers both here and abroad, more than 3000 sets machines have been sold, with a lot of high opinion.
    Company has develop producing equipment, high level service party, and powerful developing capacity. Now, we have many new technologies which are leading this industry's development, and we have the patents.
Company will focus on products' quality and after sale service more to become a model of mechanical industry.

     The introduction on the web can't fully show our capacity, we sincerely invite you to come to visit and advise our company.

    Staff Presence

    Contacts

       Shanghai Shuxin Machinery Co., Ltd
    　ADD: 10#, No.399, Zhenzhongxin RD, Songjiang Technology Park, Shanghai City,China.(Xiaokunshan Town)
    　Telephone switchboard: 0086-21-57850522/57762535
    　Mobile：0086- 15721208277   　0086- 13301760908
    　Zip code: 201614
